- Designed for use in all types of cars, for cars with the START/STOP system, electric cars, yachts, boats (open decks not flooded by waves), ATVs and other motor vehicles. With simplified Pin-to-Pin installation.

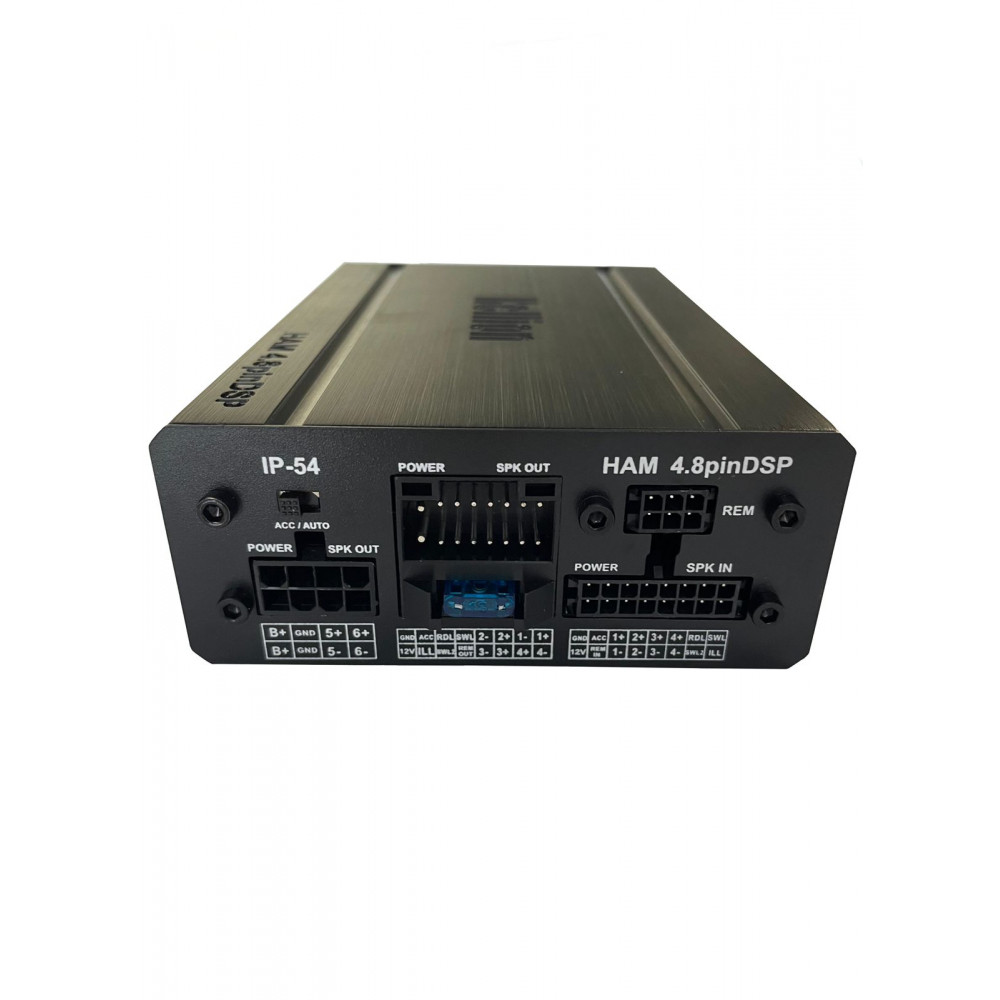

- HAM 4.8pinDSP – This is a 6-channel audio amplifier controlled by an 8-channel 32-bit sound processor with Pin-to-Pin technology, compatible with universal Android Auto head units. To improve the sound quality of your audio system, a class-D amplifier is used, operating in differential mode with a stabilized power supply. The 6-channel amplifier can operate in three power modes:
- 1. From the main power connector without an auxiliary voltage converter so as not to overload the standard wiring of the car with a total limited power of up to 300 Watt
- 2. With an additional power connector connected, the total power increases to 480W
- 3. With software control for different types of load 2 Ohm or 4 Ohm, maintaining the maximum total power level up to 480 Watt, regardless of the on-board voltage (the mode is selected according to the lowest load resistance) 8-channel 32-bit sound processor has the ability to configure 8 equivalent channels with a 31-band parametric or graphic equalizer, crossover with 1Hz adjustment step and roll-off from 6 to 48 dB/oct., time delay adjustment, phase inverter, sensitivity adjustment for each channel, summation of digital with analog input and 10 memory channels.
- HAM 4.8pinDSP is equipped with:

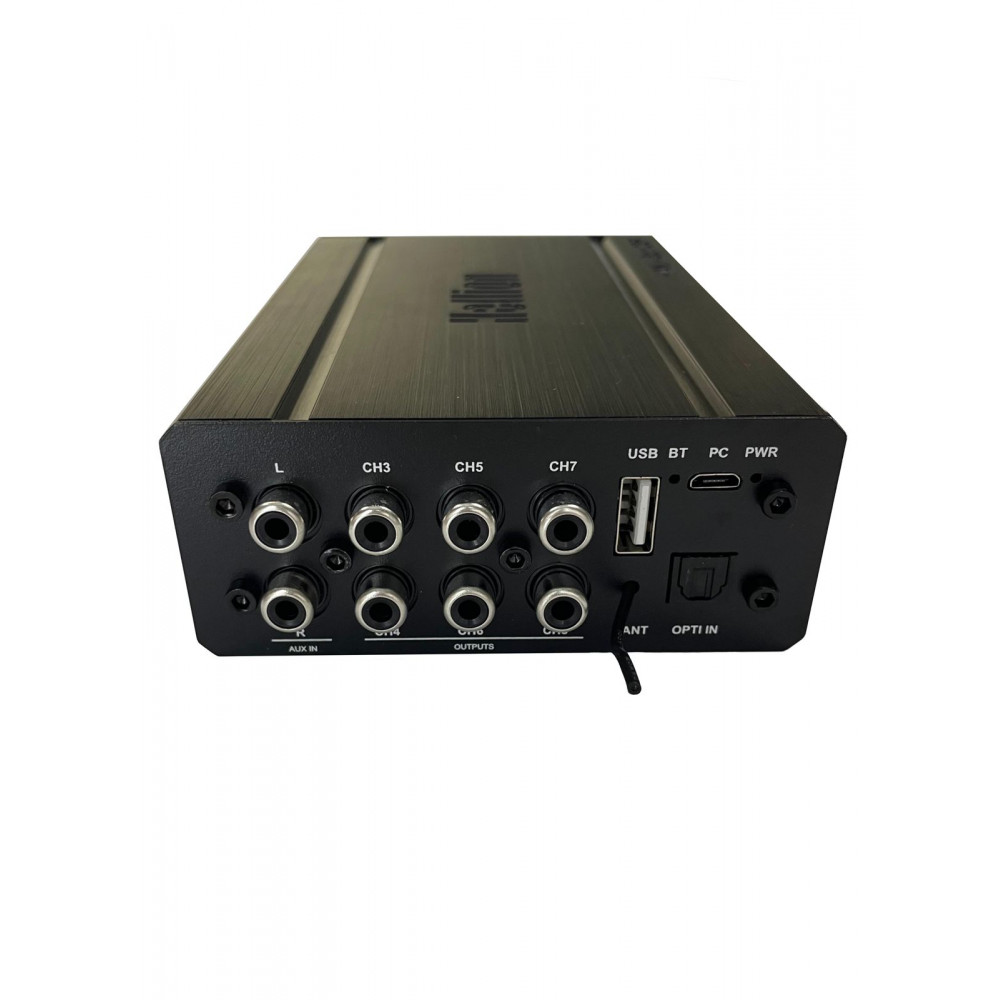

- 6-channel output for connecting amplifiers;
- 4-channel differential input of high level (Hi level);
- 2-channel differential line input (AUX);
- Bluetooth audio (Bluetooth); -USB audio input (USB AUDIO);
- USB audio player (U-disc); -Optical digital input (OPTICAL);
- Fully automatic protection against DC current, overheating, short circuits, overloads, on/off peaks and radio interference from wireless devices. The amplifier with a DSP processor is controlled from a PC and a mobile application.
- Output power RMS 680Watt@4Ohm Auxiliary power connected 680Watt@2Ohm
- Output power RMS 625Watt@4Ohm Auxiliary power not connected 625Watt@4Ohm
- 640Watt@2Ω 650Watt@1Ohm
- Frequency range 20Hz~20kHz
- DSP Processor 32-Bit, Cirrus Logic
- Signal converter ADC THD+N -98dB, AKM 32Bit 102dB DR, Cirrus Logic
- Signal converter DAC THD+N -98dB, AKM 32Bit 105dB DR, Cirrus Logic
- Bluetooth Dual stream BT5.1
- USB Music Playback Lossless format mp3, wma, aac FLAC, APE
- Waterproof: IP54
